Intercooler Audi A1 1.4/2.0TSI/TFSI Polo 6R-6C 1.4/1.8/2.0 TSI

Application:

The Performance Intercooler Kit for VAG 1,4 TSI / 2,0 TSI fits to:

For Audi A1 1,4 TSI 136KW/185PS (2010+)

For Audi A1 Quattro 2,0TFSI 188KW/256PS (2012) limited Edition

For Audi A1 1,6TDI 66-77KW/90-105PS (2011-2014)* zusätzliche Anpassung am Wasserkühler notwendig

For Audi A1 2,0TDI 105KW/143PS (2011-2014)

For Skoda Fabia RS 1,4 TSI 132KW/180PS (2010+)

For Skoda Fabia 1,6TDI 66-77KW/90-105PS (2010-2014)

For VW Polo 6R GTI 1,4 TSI 132KW/180PS (2010-2014)

For VW Polo 6R WRC 2,0 TSI 162KW/220PS (2013-2014)

For VW Polo 6C GTI 1,8 TSI 141KW/192PS (2015+)

 Description:

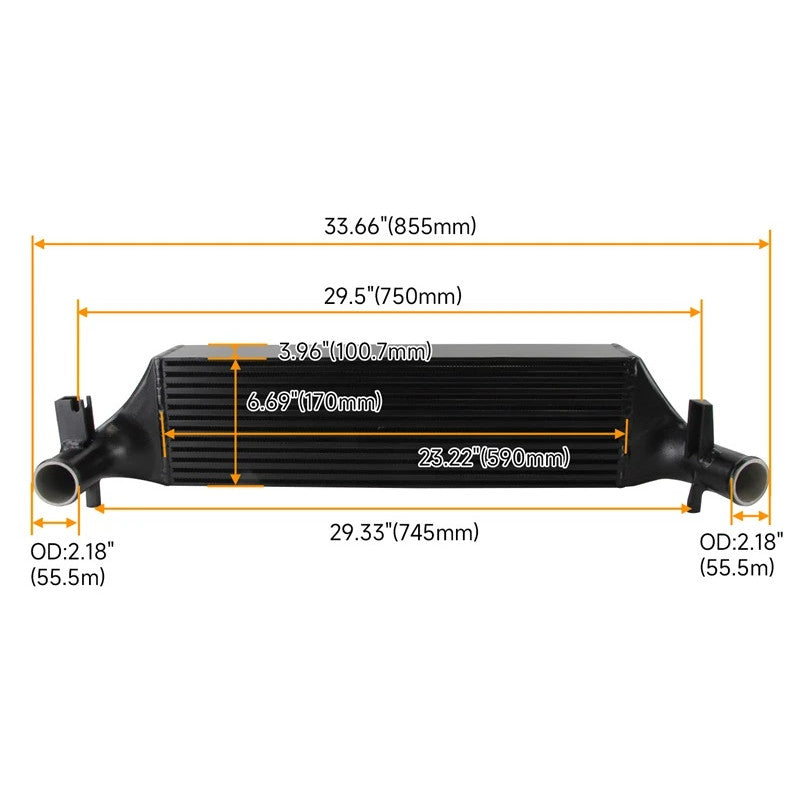

 The Competition Intercooler has the following core size (590mm x 170mm x 100mm = 10.030cm³), providing a 70% larger frontal area and 112% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.Constructed of the highest quality Bar and Plate intercooler cores combined with cast aluminum optimized by CAD. Flow analyses and simulations were created to optimise the design for best possible internal airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM intercooler. Anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power.  On both sides the connection diameter is 55mm.
