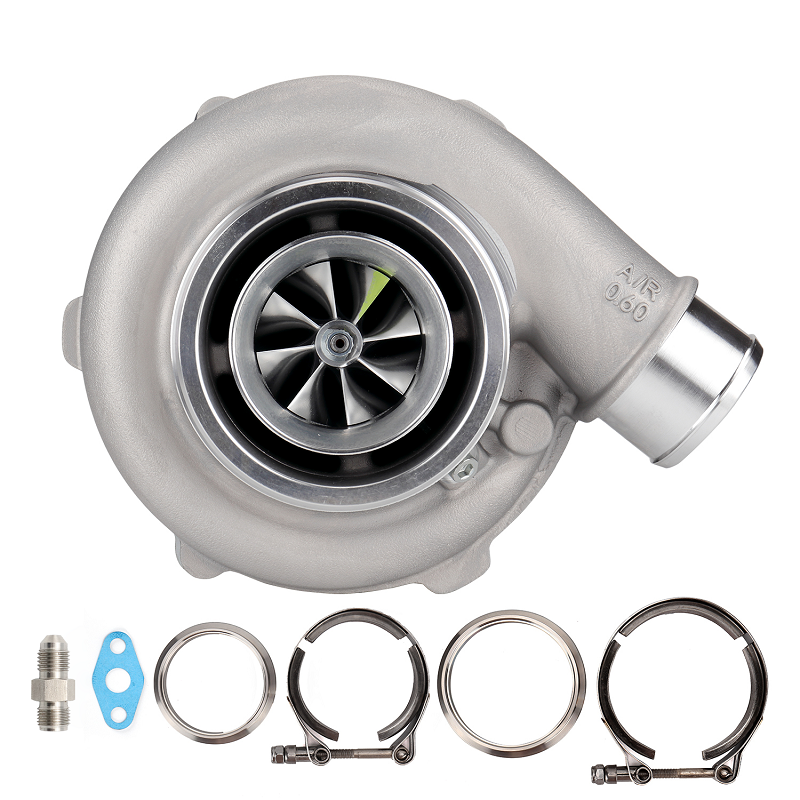

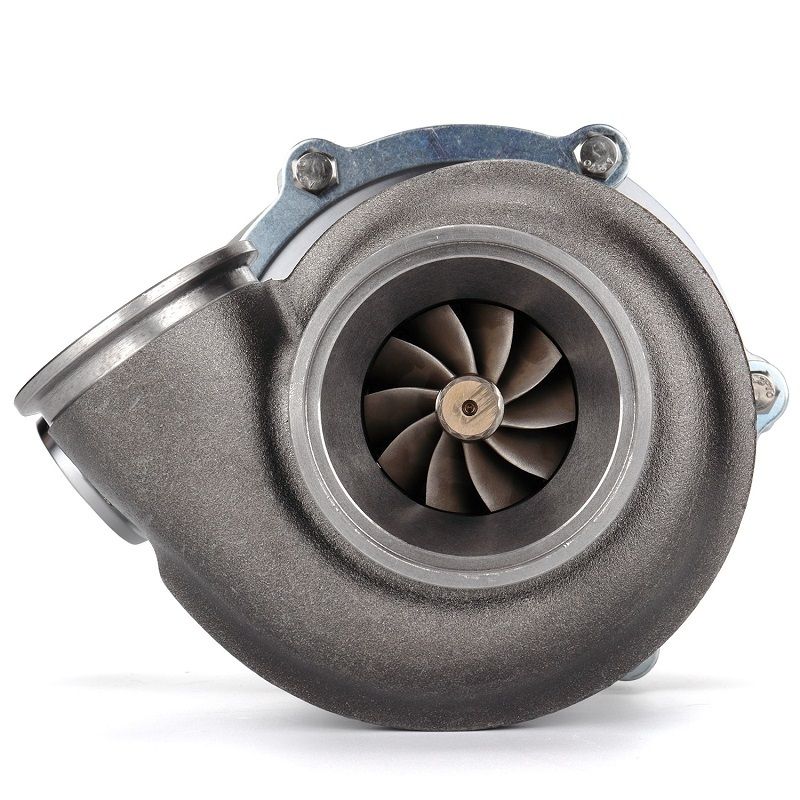

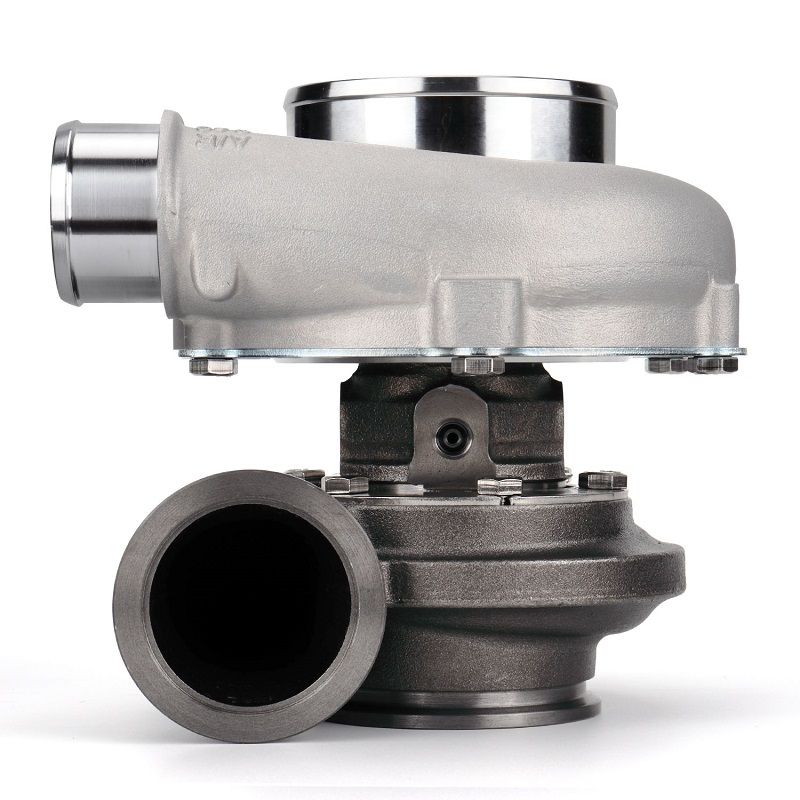

Turbocharger Pulsar PSR 3076 Gen2 750HP .83 2,5" V-Band Inlet 3" V-Band Outlet

Compressor Wheel: 58*76mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: 2.5″ V-Band

Turbine Outlet: 3″ V-Band (3.55″OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3

Flange Water In/Outlet: M14*1.5
